Description
The Frigidaire 30" Electric Range allows you to get meals on the table faster with our 3,000W element that boils faster than the traditional setting. SpaceWise(R) Expandable Elements expand to meet your cooking needs - big or small. With the Store-More(TM) Storage Drawer, you will have extra space to store your cookware.
| Product Line | Electric Range |
| Power Type | Electric 240v |
| Size | 30" |
| Installation Type | Free-Standing |
| Factory | Springfield |
| Color | Black |
| Installation | |
| Adjustable Leveling Legs | Yes |
| Power Supply Connection Location | Bottom Center |
| General Specifications | |
| Frigidaire Fit Promise | Yes |
| Product Weight | 161.5 lbs |
| Prop 65 Label | Yes |
| Warranty - Labor | 1 Year |
| Warranty - Parts | 1 Year |
| Drawer | |
| Drawer Type | Storage |
| Exterior | |
| Cooktop Finish | Black |
| Drawer Finish | Black |
| Handle Color | Black |
| Knob Color | Black |
| Electrical Specifications | |
| Minimum Circuit Required | 40 Amps |
| Voltage Rating | 240 V |
| Certifications and Approvals | |
| ADA Compliant | Yes |
| Cooking Controls | |
| Bake | Yes |
| Broil | Yes |
| Cancel | Yes |
| Delay Clean | Yes |
| Keep Warm | Yes |
| Kitchen Timer | Yes |
| Lockout | Yes |
| Off | Yes |
| Oven Light | Yes |
| Preheat | Yes |
| Probe | No |
| Self Clean | Yes |
| Steam Clean | Yes |
| Temperature Display | Yes |
| Timed Bake | Yes |
| Oven | |
| Bake Element | 3,500 Watts |
| Bake Element Pass | 8 |
| Bake Element Type | Hidden |
| Bake System | Yes |
| Broil Element | 3,900 Watts |
| Broil Element Pass | 6 |
| Broil System | Yes |
| Number of Rack Positions | 6 |
| Rack Position Type | Nickel Ladder |
| Rack Type 1 | Flat |
| Rack Type 1 Quantity | 2 |
| Window Type | Extra Large Visual |
| Cooktop | |
| Cooking Surface Type | Smooth |
| Element On Indicator Light | Yes |
| Hot-Surface Indicator Light | Yes |
| Keep Warm Zone Light | Yes |
| Dimensions and Volume | |
| Height | 36 5/8" |
| Width | 29 7/8" |
| Depth | 26 3/4" |
| Depth With Door 90° Open | 47" |
| Depth With Handle | 29 3/16" |
| Oven Interior Height | 18 5/8" |
| Oven Interior Width | 24 3/8" |
| Oven Interior Depth | 19 1/8" |
| Oven Capacity | 5 Cu. Ft. |
| Safety Certifications and Approvals | |
| UL Listed | Yes |
| ETL Listed | No |
| Controls | |
| Control Lock | Yes |
| Sabbath Mode | No |
| Cooktop Performance | |
| Right Front Element Burner Size | 12" |
| Right Rear Element Burner Size | 6" |
| Left Front Element Burner Size (Small) | 6" |
| Left Front Element Burner Size (Large) | 9" |
| Left Rear Element Burner Size | 6" |
| Right Front Element Burner | 2,700 Watts |
| Right Rear Element Burner | 1,200 Watts |
| Left Front Element Burner (Small) | 1,400 Watts |
| Left Front Element Burner (Large) | 3,000 Watts |
| Left Rear Element Burner | 1,200 Watts |
| Keep Warm Burner Location | Center Rear |
| Display | |
| Control Location | Front |
| Display Type | Membrane |

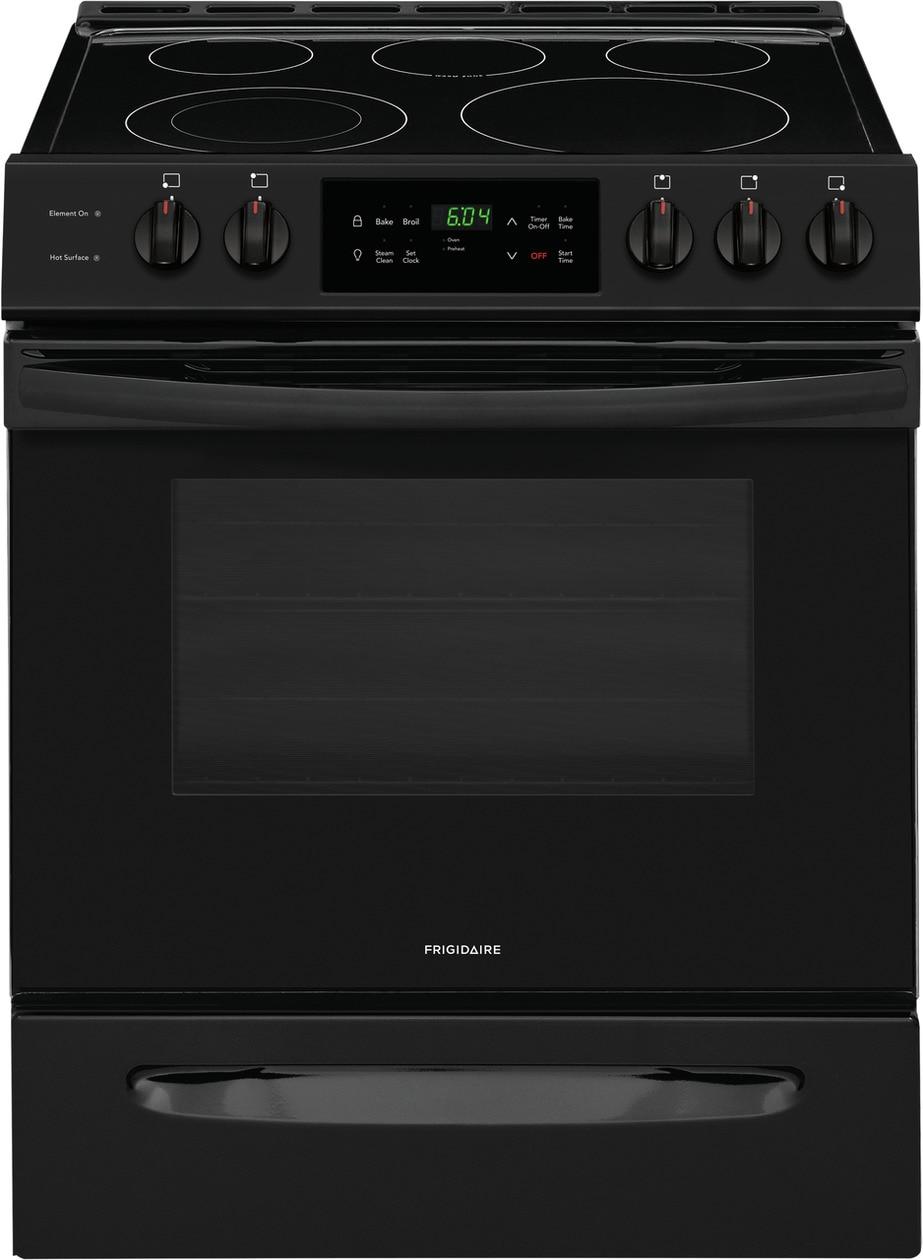

FRIGIDAIRE FFEH3054UB 30" Front Control Freestanding Electric Range
