Description
The Frigidaire 27" Single Wall Oven with Fan Convection allows you to achieve faster, more even multi-rack baking results. Plus, it features a premium touch screen digital control panel and provides peace of mind that it will fit existing cutouts with our Frigidaire Fit Promise.
| Product Line | Single Wall Oven |
| Power Type | Electric 240v |
| Size | 27" |
| Installation Type | Built-In |
| Factory | Springfield |
| Color | Stainless Steel |
| Installation | |
| Power Supply Connection Location | Top Left |
| Electrical Specifications | |
| Amps @ 240 Volts | 20 Amps |
| Connected Load @ 240V | 4.5 kW |
| Minimum Circuit Required | 20 Amps |
| Voltage Rating | 240 V |
| Certifications and Approvals | |
| ADA Compliant | Yes |
| Star-K Certification | Yes |
| Cooking Controls | |
| Bake | Yes |
| Bake Time | Yes |
| Broil | Yes |
| Cancel | Yes |
| Clock | Yes |
| Convection Bake | Yes |
| Cook Time | Yes |
| Delay Start | Yes |
| Keep Warm | Yes |
| Kitchen Timer | Yes |
| Light | Yes |
| Off | Yes |
| Oven Light | Yes |
| Preheat | Yes |
| Quick Preheat | Yes |
| Self Clean | Yes |
| Start | Yes |
| Temperature Display | Yes |
| Timer On / Off | Yes |
| Oven | |
| Bake Element | 2,500 Watts |
| Bake Element Pass | 8 |
| Bake Element Type | Hidden |
| Broil Element | 4,000 Watts |
| Broil Element Pass | 6 |
| Broil System | Yes |
| Cleaning System | Yes |
| Convection | Yes |
| Convection Type | Fan |
| Number of Convection Fans | 1 |
| Number of Rack Positions | 5 |
| Oven Interior Color | Midnight Black |
| Oven Light Quantity | 1 |
| Oven Light Type | Halogen |
| Oven Light Watts | 40 Watts |
| Rack Position Type | Embossed |
| Rack Type 1 | Handle |
| Rack Type 1 Quantity | 2 |
| Dimensions and Volume | |
| Height | 29 1/2" |
| Width | 27" |
| Depth | 24 3/4" |
| Depth With Door 90° Open | 45 3/4" |
| Depth With Handle | 27 7/16" |
| Oven Interior Height | 17" |
| Oven Interior Width | 20 1/2" |
| Oven Interior Depth | 18 3/4" |
| Minimum Cutout Height | 27 1/4" |
| Minimum Cutout Width | 24 7/8" |
| Maximum Cutout Height | 28 1/4" |
| Maximum Cutout Width | 25 1/4" |
| Oven Capacity | 3.8 Cu. Ft. |
| Safety Certifications and Approvals | |
| CSA Listed | Yes |
| UL Listed | Yes |
| RoHS | Yes |
| Controls | |
| Control Lock | Yes |
| Sabbath Mode | Yes |
| General Specifications | |
| Frigidaire Fit Promise | Yes |
| Product Weight | 110 lbs |
| Prop 65 Label | Yes |
| Warranty - Labor | 1 Year |
| Warranty - Parts | 1 Year |
| Cooking Controls Function | |
| Change between Continuous Bake Setting or 12-Hour Energy Saving Feature | Yes |
| Delayed Bake | Yes |
| Program Fahrenheit or Celsius | Yes |
| Silent Control Panel | Yes |
| Display | |
| Control Location | Front |
| Display Interface Color | White |
| Display Light Color | White |
| Display Type | LED |

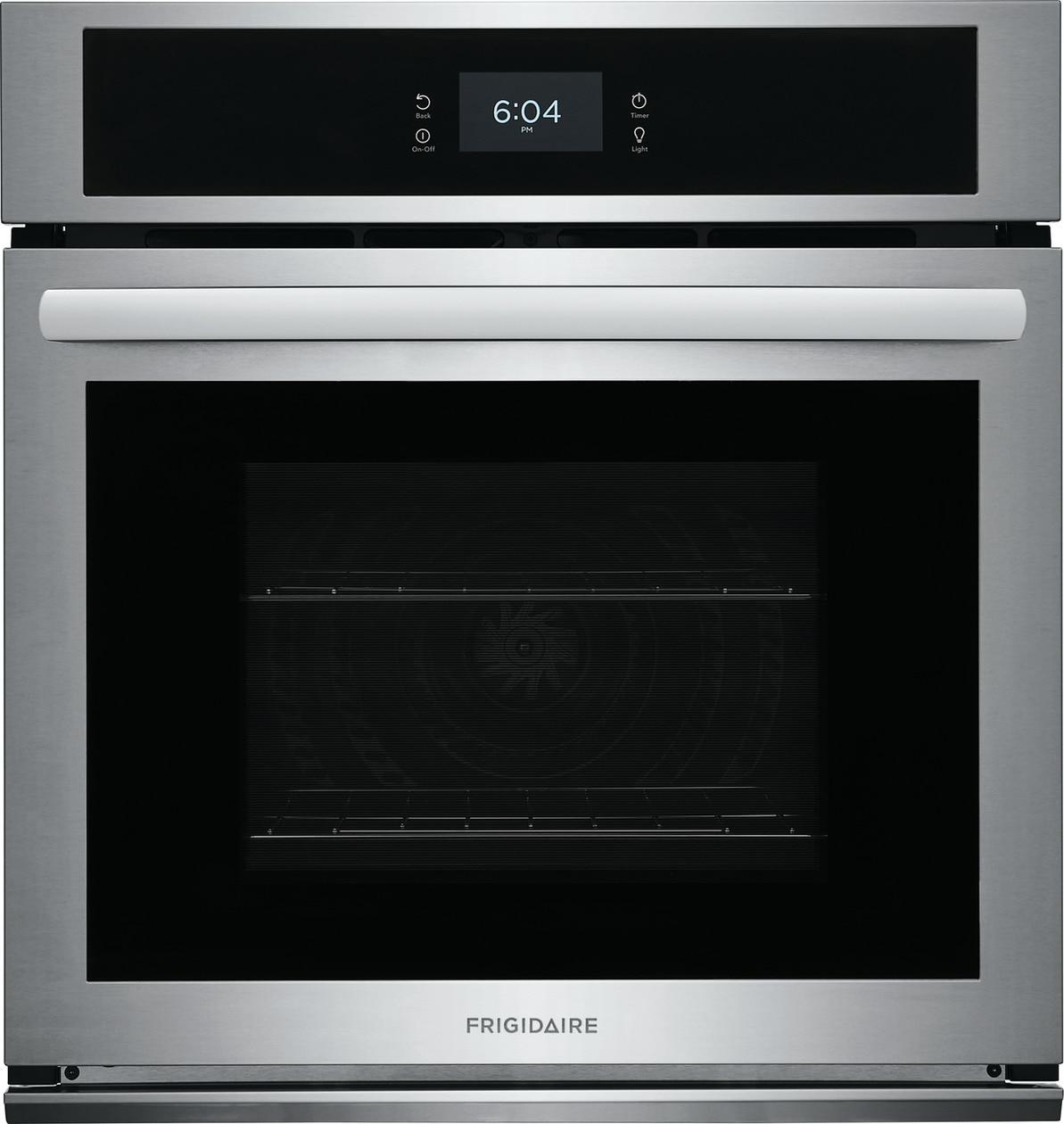

FRIGIDAIRE FCWS2727AS 27" Single Electric Wall Oven with Fan Convection
