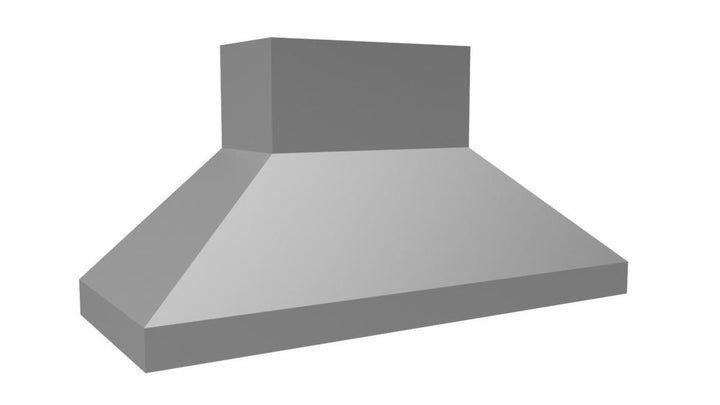

This Euroline Pro with squared lip is boldly designed to cover light residential, "commercial type" cooking equipment. To order a 27" depth, add an 'X' after 'EP' in the model number. The Euroline Pro Series with Emerald Lip is also available with a 26" wide x 14" deep top to allow for higher CFM requirements . Heat lamps are not available on this model. Click on the models for a list of our base model numbers for standard sizes; simply select the model you need, and then specify the finish [painted, stainless steel, real brass, real copper, or hammered copper]. Recommended mounting height is 30" from the cooking surface. Shown with matching wall mount duct cover [sold separately], available in standard sizes for 8', 9', and 10' ceiling heights or in custom sizes. All Vent-A-Hood products are suitable for use in damp locations [outdoor applications such as a covered patio] when installed in a GFCI protected branch circuit.(BR)
| WIDTH : | 48" |
| DEPTH : | 24" |
| HEIGHT : | 18" |
| CFM : | 900 |
| SONES : | 6.3 |
| Amps : | 6.0 |
| Num. Lights : | 3 |
| ELECTRICAL/MECHANICAL SPECIFICATIONS FOR BLOWER UNIT | |
| Model | B200 Dual & B100 Single |
| Volts | 115 |
| Amps+ | 6.0 |
| Hz | 60 |
| RPM | 1550 |
| CFM SP@0.0" | 900 |
| Equiv. CFM$ | 1350 |
| CFM SP@0.1" | 804 |
| CFM SP@0.2" | 725 |
| CFM SP@0.3" | 655 |
| Min. Round Duct Size | 10" (79 sq. in.) |
| Sones# | 6.3 |
